HOW TO OPERATE YOUR TAILGATE

1. Manual Gate

2. Manual Gate + EZ Lift & Lower

3. EZ Lift & Lower + Power Lock and Release

4. Powered Endgate

5. GMC MultiPro^TM and Chevrolet Multi-Flex^TM Tailgate

1. Manual Gate

• Operate it by hand
• Features a traditional handle

2. Manual Gate + EZ Lift & Lower

• Operate it by hand
  • Features a traditional handle and the EZ Lift & Lower lift assist. The EZ Lift is designed to make it easier to lift and close the tailgate. The EZ Lower assist is designed to help you let the gate open gently.


3. EZ Lift & Lower + Power Lock and Release

• You can lock the tailgate
• You can open the tailgate automatically by double-pressing a key fob button, using a switch on the instrument panel or by pressing a button on the tailgate

4. Powered Endgate

• You can open and close the tailgate by pressing a button on the tailgate, double-pressing and holding the key fob button, or by holding a switch on the instrument panel until the tailgate opens or closes
• You can also close the tailgate by raising it slightly and holding it in that position. The tailgate will continue to the closed position automatically


5. GMC MultiPro and Chevrolet Multi-Flex Tailgate

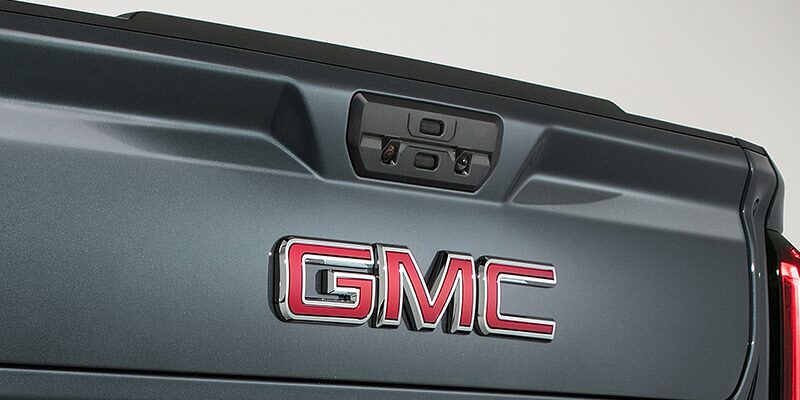

• Two buttons on the tailgate control the inner and outer tailgates. The upper button opens the inner gate, and the lower button opens the outer gate
• After you press the upper button to open the inner gate, you must pull the gate out. The outer gate will automatically open after you press the lower button. The outer gate will not open if the inner gate is open.

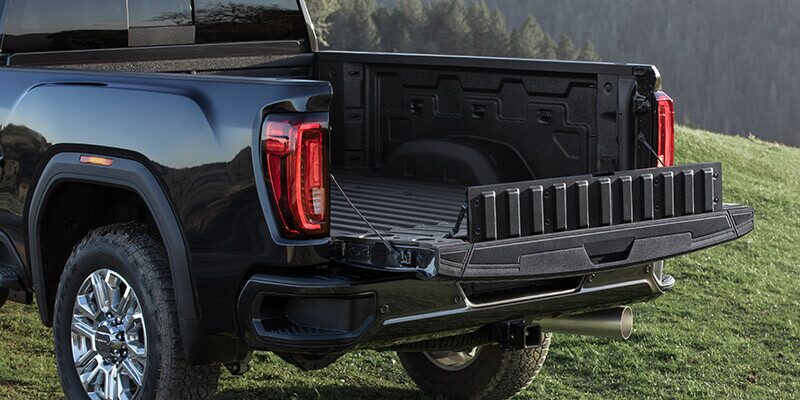

• When the primary gate is down, unlatch the stop from the inner gate and pull it into the vertical position
• Helps keep long items from sliding out when the primary gate is open. Be sure to rest stored objects against the load stop to reduce shifting of loads during motion


• With the outer gate open, press the upper touch pad on the tailgate handle and let the inner gate open
• Provides easier access to your truck’s cargo

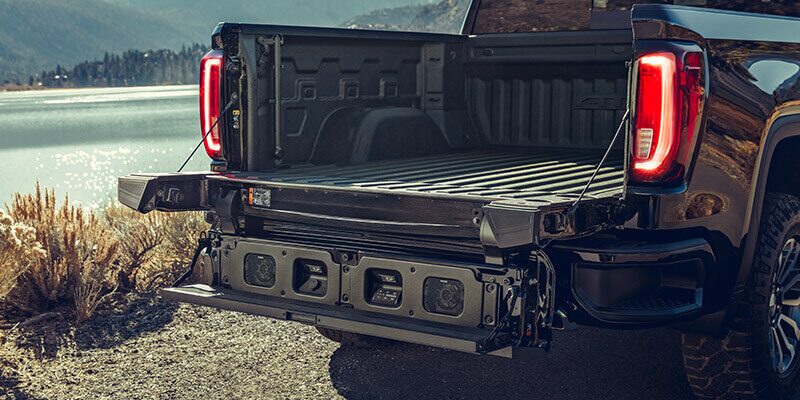

• With the outer gate opened, unlatch the inner gate and fold it down. Then, unlatch the step and fold it down fully
• Step is rated up to 170 kg^† (375 pounds; includes weight of person plus cargo they’re carrying)

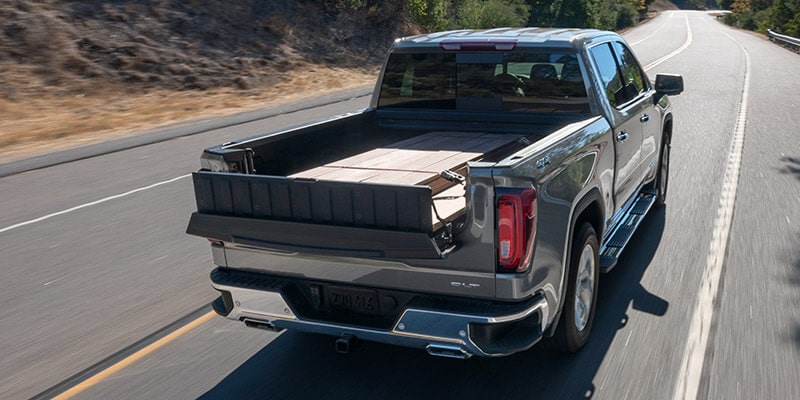

• With the primary gate latched, lower the inner gate for a second tier of storage
• Then unlatch the inner panel to serve as a load stop


• With the primary gate latched, lower the inner gate
• Serves as a useful work surface


MultiPro Tips

• Don’t open the inner gate with the primary gate open if there is a hitch ball or trailer attached. This will damage the tailgate
• To get both gates to open in one motion, press the lower button and then quickly press the upper button on the tailgate touch pad
• You can also disable the inner tailgate from opening. When your key fob is within one metre (three feet) of the rear bumper, hold the upper touch pad on the tailgate handle for three seconds. Your taillamps will flash to alert you that the inner gate has been disabled
• After disabling the inner tailgate, you can open it again by holding the upper touch pad again for three more seconds until the taillamps flash
